Ultra 3000S

Starting at
 28.250
Limited stock

The Ultra 3000S is purpose-built for demanding cutting applications. With full-servo motion, optimized mechanics, and optional 300 W laser power, it delivers unmatched speed, precision, and consistency — the ultimate production-grade cutting machine

Excellent
4,3 out of 5 based on 102 reviews

Request a no-obligation quote.

Features

Every Ultra 3000S comes with our BRM quality checklist and a complete setup to get you running fast: water chiller, three non-filtering fume extractors, LightBurn software, maintenance set, manual, and two lenses. Specially engineered for high-performance cutting, the 3000S features a precision spindle drive, full-servo control on both axes, a constant-beam-path optical system, and water-cooled mirrors for maximum stability and accuracy — even at 300 W laser power.

Techical specifications
Working area WxDxH
1500 x 3000 x 30 mm
Maximum table load
Dimensions WxDxH
2225 x 4445 x 2135 mm
Max. bewerkingssnelheid
300 mm/s
Max. acceleratie
1000 mm/s²
Motortype
Servomotors
Encoderprecisie
23 bit
Positioneringssysteem
Spindle X-axis, Rack and pinion Y-axis
Spiegelkoeling
Water cooled
Autofocus
Afschakelvertraging
Extraction switches on automatically for every task and switches off with a delay
Luchttoevoer
Air supply unit with software-controlled valve for each layer
Verdere standaarduitrusting
135 W air pump | Maintenance kit | Manual
Weight
1400 kg
Electrical load
3 ~ 230 VAC, 50 Hz, max 9,6 kW (3x 16 A)
Connectivity
USB cable, USB flash drive, network and Interlock connector
Climate
17-23°C, 50-60%
Laserclass
Laserklasse 4
Laserpointer
Max. speed
Max. acceleration
Accuracy
0,1 mm cutting
Laser power
130 – 160 W / 280 – 300 W
Max. cutting capabilities (at optimum power)
12-85%
Life expectancy
Attached optics
63,5 mm en 101,6 mm
Show more
Show less
Extra's
Premium roller rotation
Premium claw rotation
Overheadcamera
Filter unit
BRM Extractor XXXL BRM Extractor XXXL Replacement filters: – Pre filter (2x) – Combined filter (2x)
€ 12.795
Lens shaft set
Acrylic cutting grid
These grids (400 x 600 mm) ensure reflection-free cutting.
€ 29,50
Turn-off delay
Work Table
Rookgasafzuiging
Autofocus
Air supply
Show more
Show less
Ultra 3000S

Images

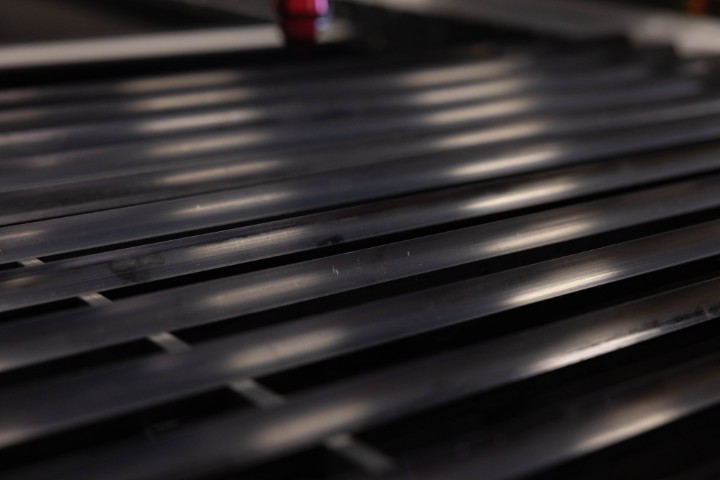

Slat Table
#
/
1

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat. Aenean faucibus nibh et justo cursus id rutrum lorem imperdiet. Nunc ut sem vitae risus tristique posuere.

BRM Extractor XXXL
#
/
1

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat. Aenean faucibus nibh et justo cursus id rutrum lorem imperdiet. Nunc ut sem vitae risus tristique posuere.

Maintenance kit
#
/
1

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat. Aenean faucibus nibh et justo cursus id rutrum lorem imperdiet. Nunc ut sem vitae risus tristique posuere.

Lightburn
#
/
1

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat. Aenean faucibus nibh et justo cursus id rutrum lorem imperdiet. Nunc ut sem vitae risus tristique posuere.

No items found.
High accuracy with the BRM Laser machine icon
Process countless materials
Save time with the BRM Laser Machine due to its high working speed icon
Work quicker, deliver quicker
High accuracy with the BRM Laser machine icon
No post processing needed
Minimal residual material with the BRM Laser Machine
Minimal cutting loss
Orange Blob

Whatever you imagine, you can create.

Applications

With a user-friendly BRM laser machine, you cut and engrave the most varying materials.

From wood to plastics and from textiles to cardboard. And that’s not all. What would you like to create? With our machine you can make it.

Onze expertises

Acrylics
Glass
Hardboard
Plywood
Cardboard
Plastics
Leather
Metals
Natural stone
Paper
Plexiglas
Polystyrene & Styrofoam (EPS)
Polycarbonate
Rubber
Mirror
Foam
Textile
Possibilities and materials
BRM laser machine in a fablab with someone explaining the machine

Test your material?

We are happy to help you test your material for free. Visit us for a demo, and we will inform you about the results, the optimal speed, and the settings.
Request demonstration

Processable materials

Processable materials
Cutting
Engraving
Blank metals
Cardboard and hardboard
Acryl, Plexiglas, PMMA
Ceramic and porcelain
Coated and anodized metals
Cork
Filt and foam
gaskets
Glass and mirrors
leather
MDF
Multiplex
natural stone, granite, and marble
Paper
Polyester
polypropylene
Polystyrene
Textile
PVC and PVC containing plastics
Wood
Trespa
Show more
Toon minder
Can be processed with our machines
Needs laser spray to get a distinctive visible marking effect.
Contains toxics and can’t be processed with our machines.
Download our  free brochure for more information

The company has worked on several eye-catching projects, including Rotterdam Central Station, Amsterdam South Station and the HAUT project. Patrick Bil, an engineer who makes scale models for Team V, described the “knife and cutting mat method”, which was previously used. With very little chance of achieving the desired detailed end result.

A personal approach

Are you considering adding a BRM laser to your location? Let's chat in person to tailor the solution to your specific needs and desires.

Eric
Slotboom

Lasermachine Consultant

Eric Slotboom Employee of BRM
Check icon

Dutch-designed

Check icon

Affordable

Check icon

Flawless quality

Check icon

Fast and decisive

Check icon

Always personal

About our machines.

The best you can get

Are you ready for the next step? We provide user-friendly laser machines that take your products and organisation to the next level. Cut and engrave countless materials quickly and extremely accurately. Avoid cutting losses and save time, because there is no need for post-processing. Increase your production capacity and reach your growth targets with a laser that meets all your requirements.

Series

Ultra 3000

The Ultra 3000 is our largest all-round CO₂ laser — designed for maximum flexibility. Its generous size makes it perfect for scaling up production while maintaining precision across a wide range of materials and applications.

Series

Ultra 2500

The Ultra 2500 is suited for large standard sheet material due to its spacious working area. Perfect for production companies and plastics processors.

Series

Slim 600

The Slim 600 is the smallest machine in this range. This makes it the perfect basic laser for hobbyists and small companies.

Series

Pro 900

The Pro 900 is the mid-range model in terms of size. This professional CO2 laser enables you to cut and engrave small to medium-sized projects.

Series

Ultra 3000S

The Ultra 3000S is purpose-built for demanding cutting applications. With full-servo motion, optimized mechanics, and optional 300 W laser power, it delivers unmatched speed, precision, and consistency — the ultimate production-grade cutting machine

Series

Pro 1600

The Pro 1600 combines the safety of a closed laser with the size of a production machine. It is therefore ideal for large workspaces and production companies.

Series

Slim 900

The Slim 900 is a perfect fit for schools with media, design and technology in their curriculum. Students learn to design and execute 2D and 3D items.

Series

Pro 1300

The Pro 1300 is versatile because you can easily process small and large material. This format is perfect for medium to large workspaces.

Series

Slim 1300

The Slim 1300 has the best selling size. It is ideal for start-ups or makerspaces because you can easily switch between large and small items.

Series

Pro 600

The Pro 600 is small in size but offers great performance. This compact size finds a place anywhere.

Series

Slim 1600

The Slim 1600 has the best selling size. It is ideal for start-ups or makerspaces because you can easily switch between large and small items.
Orange Blob

Frequently Asked Questions

Is using a laser machine safe?

Safety When Using Laser Machines

Yes, using a laser machine can be safe as long as the proper safety measures are taken. This includes wearing protective eyewear and following the machine's user manual.

Important Safety Measures

  • Always wear protective gear.
  • Keep the workspace clean and organized.
  • Follow the manufacturer's instructions.

By following these guidelines, safety during the use of laser machines can be ensured.

What is a laser machine?

Introduction to Laser Machines
A laser machine is a device that uses laser beams to cut, engrave, or mark materials. This technology is widely used in various industries, from manufacturing to art.

How Does a Laser Machine Work?
Laser machines work by directing a concentrated laser beam onto the material. The high temperature of the laser melts or vaporizes the material, creating precise cuts or engravings.

What are the advantages of laser machines?

Advantages of Laser Machines

Laser machines offer numerous benefits, including:

  • Accuracy: Lasers can make very precise cuts.
  • Flexibility: Suitable for various materials such as wood, metal, and plastic.
  • Efficiency: Fast production processes with less waste.

These advantages make laser machines a popular choice for businesses seeking efficiency and quality.
