Highlights
A quicker work process
Accurate
Endless material possibilities
Flexibility
Endless possibilities
Prevent cutting loss

Ultra 2500

Starting at
 21.250
Limited stock

The Ultra 2500 is suited for large standard sheet material due to its spacious working area. Perfect for production companies and plastics processors.

Excellent
4,3 out of 5 based on 102 reviews

Request a no-obligation quote.

Features

Every Ultra is delivered with our BRM quality checklist and includes all the components needed to get your production going: A water chiller, three non-filtering fume extractors, LightBurn software, maintenance set, our manual and two lenses.

Techical specifications
Working area WxDxH
1300 x 2500 x 30 mm
Maximum table load
Dimensions WxDxH
2110 x 3830 x 2135 mm
Max. bewerkingssnelheid
1000 mm/s X-axis, 300 mm/s Y-axis, 100 mm/s maximum recommended cutting speed*
Max. acceleratie
8000 mm/s² X-as, 1000 mm/s² Y-as
Motortype
Stepper motor X-axis, Servo's on Y-axis
Encoderprecisie
23 bit
Positioneringssysteem
Belt X-axis, Rack and pinion Y-axis
Spiegelkoeling
Passively cooled
Autofocus
Afschakelvertraging
Extraction switches on automatically for every task and switches off with a delay
Luchttoevoer
Air supply unit with software-controlled valve for each layer
Verdere standaarduitrusting
135 W air pump | Maintenance kit | Manual
Weight
1250 kg
Electrical load
3 ~ 230 VAC, 50 Hz, max 9,6 kW (3x 16 A)
Connectivity
USB cable, USB flash drive, network and Interlock connector
Climate
17-23°C, 50-60%
Laserclass
Laserklasse 4
Laserpointer
650 nm, <5 mW
Max. speed
Max. acceleration
Accuracy
0,1 mm cutting
Laser power
100 – 130 W / 130 – 160 W
Max. cutting capabilities (at optimum power)
12-85%
Life expectancy
Attached optics
63,5 mm en 101,6 mm
Show more
Show less
Extra's
Premium roller rotation
Premium claw rotation
Overheadcamera
Filter unit
BRM Extractor XXL Replacement filters: – Pre filter – Combined filter
€ 6.495
Lens shaft set
Acrylic cutting grid
These grids (400 x 600 mm) ensure reflection-free cutting.
€ 29,50
Turn-off delay
Work Table
Rookgasafzuiging
Autofocus
Air supply
Show more
Show less
Ultra 2500

Images

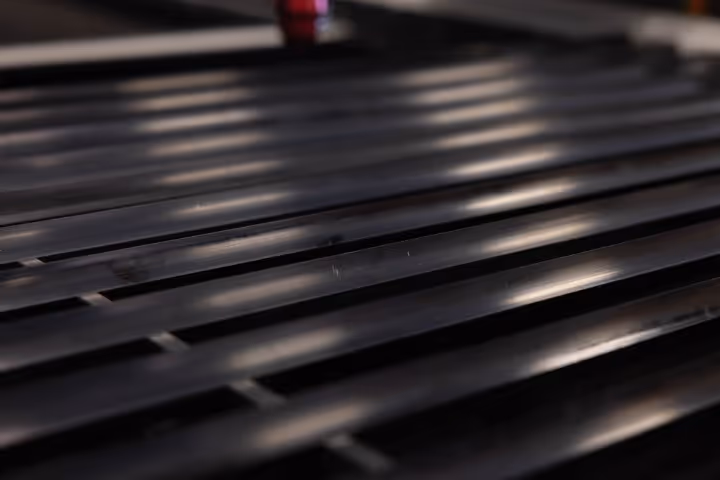

Slat table
#
/
1

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat. Aenean faucibus nibh et justo cursus id rutrum lorem imperdiet. Nunc ut sem vitae risus tristique posuere.

BRM Extractor XXXL
#
/
1

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat. Aenean faucibus nibh et justo cursus id rutrum lorem imperdiet. Nunc ut sem vitae risus tristique posuere.

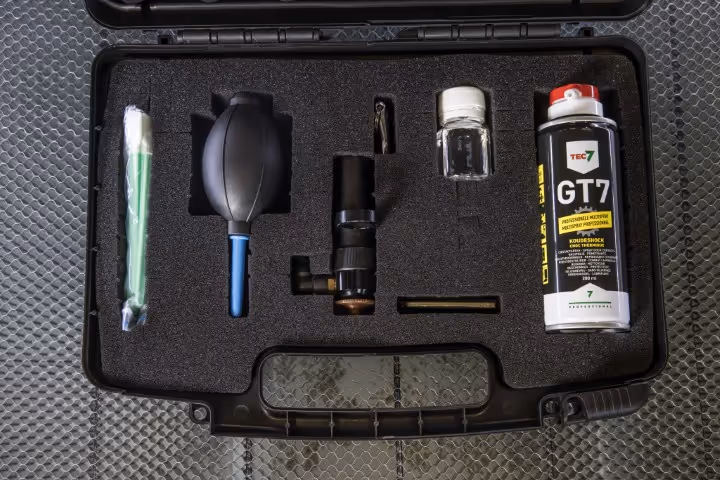

Maintenance case
#
/
1

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat. Aenean faucibus nibh et justo cursus id rutrum lorem imperdiet. Nunc ut sem vitae risus tristique posuere.

LightBurn
#
/
1

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat. Aenean faucibus nibh et justo cursus id rutrum lorem imperdiet. Nunc ut sem vitae risus tristique posuere.

No items found.
High accuracy with the BRM Laser machine icon
Process countless materials
Save time with the BRM Laser Machine due to its high working speed icon
Work quicker, deliver quicker
High accuracy with the BRM Laser machine icon
No post processing needed
Minimal residual material with the BRM Laser Machine
Minimal cutting loss
Orange Blob

Whatever you imagine, you can create.

Applications

With a user-friendly BRM laser machine, you cut and engrave the most varying materials.

From wood to plastics and from textiles to cardboard. And that’s not all. What would you like to create? With our machine you can make it.

Onze expertises

Acrylics
Glass
Hardboard
Plywood
Cardboard
Plastics
Leather
Metals
Natural stone
Paper
Plexiglas
Polystyrene & Styrofoam (EPS)
Polycarbonate
Rubber
Mirror
Foam
Textile
Possibilities and materials
BRM laser machine in a fablab with someone explaining the machine

Test your material?

We are happy to help you test your material for free. Visit us for a demo, and we will inform you about the results, the optimal speed, and the settings.
Request demonstration

Processable materials

Processable materials
Cutting
Engraving
Acryl, Plexiglas, PMMA
Blank metals
Cardboard and hardboard
Ceramic and porcelain
Coated and anodized metals
Cork
Filt and foam
gaskets
Glass and mirrors
leather
MDF
Multiplex
natural stone, granite, and marble
Paper
Polyester
polypropylene
Polystyrene
PVC and PVC containing plastics
Textile
Wood
Trespa
Show more
Toon minder
Can be processed with our machines
Needs laser spray to get a distinctive visible marking effect.
Contains toxics and can’t be processed with our machines.
Download our  free brochure for more information

Why This Size?

Often, the samples found in color swatches are about 7 cm wide and 25 to 35 cm long. Other dimensions are, of course, possible as well. In any case, a certain number of samples are processed simultaneously in the machine, allowing everything to be lasered in one go. Now that we have two laser machines, we alternate their use a bit.

Other Materials, Too?

They are now working towards using the machines for additional purposes. This year, they’re well-occupied with laser machine orders until the very end. After that, they plan to focus on making other products—such as cutting items for promotional purposes and similar projects. They’re currently gathering ideas for this, including exploring the use of materials like mirrors or acrylic.

A personal approach

Are you considering adding a BRM laser to your location? Let's chat in person to tailor the solution to your specific needs and desires.

Eric
Slotboom

Lasermachine Consultant

Eric Slotboom Employee of BRM
Check icon

Dutch-designed

Check icon

Affordable

Check icon

Flawless quality

Check icon

Fast and decisive

Check icon

Always personal

About our machines.

The best you can get

Are you ready for the next step? We provide user-friendly laser machines that take your products and organisation to the next level. Cut and engrave countless materials quickly and extremely accurately. Avoid cutting losses and save time, because there is no need for post-processing. Increase your production capacity and reach your growth targets with a laser that meets all your requirements.

Series

Ultra 3000

The Ultra 3000 is our largest all-round CO₂ laser — designed for maximum flexibility. Its generous size makes it perfect for scaling up production while maintaining precision across a wide range of materials and applications.

Series

Pro 900

The Pro 900 is the mid-range model in terms of size. This professional CO2 laser enables you to cut and engrave small to medium-sized projects.

Series

Ultra 2500

The Ultra 2500 is suited for large standard sheet material due to its spacious working area. Perfect for production companies and plastics processors.

Series

Pro 1600

The Pro 1600 combines the safety of a closed laser with the size of a production machine. It is therefore ideal for large workspaces and production companies.

Series

Ultra 3000S

The Ultra 3000S is purpose-built for demanding cutting applications. With full-servo motion, optimized mechanics, and optional 300 W laser power, it delivers unmatched speed, precision, and consistency — the ultimate production-grade cutting machine

Series

Pro 600

The Pro 600 is small in size but offers great performance. This compact size finds a place anywhere.

Series

Slim 1600

The Slim 1600 has the best selling size. It is ideal for start-ups or makerspaces because you can easily switch between large and small items.

Series

Slim 600

The Slim 600 is the smallest machine in this range. This makes it the perfect basic laser for hobbyists and small companies.

Series

Slim 1300

The Slim 1300 has the best selling size. It is ideal for start-ups or makerspaces because you can easily switch between large and small items.

Series

Pro 1300

The Pro 1300 is versatile because you can easily process small and large material. This format is perfect for medium to large workspaces.

Series

Slim 900

The Slim 900 is a perfect fit for schools with media, design and technology in their curriculum. Students learn to design and execute 2D and 3D items.
Orange Blob

Frequently Asked Questions

How do I choose the best BRM laser for my application?

By answering three questions, you'll make the choice much easier. What materials will you process? What will you mainly be doing? (Cutting, engraving, or both equally.) What work surface do you need? Once you have this sorted, we will help you specifically determine the best option.

What can I not process with a laser machine?

A lot can be done with a laser, but there are exceptions. When processing certain materials, such as PVC for example, contaminated fumes are released that are harmful to health and can damage the machine. Therefore, our advice is to avoid using these materials. If in doubt, always ask the manufacturer for the exact composition to ensure that the material is suitable.

Which materials can I process with a BRM laser?

A BRM laser helps you quickly and effortlessly cut or engrave countless organic materials. From acrylic to hardboard, from wood to textiles, and more! The possibilities are virtually endless. Unsure if your specific material is suitable? Let us test it for you. We do this for free. That way, you'll know immediately if your application is possible.
